ReeR Safety Light Curtains – Advanced Protection for Industrial Applications
ReeR's Safety Light Curtains provide advanced protection for industrial applications, ensuring operator safety and compliance with international standards. These electro-sensitive protective devices (ESPE) use light beams to create an invisible safety barrier, detecting the presence of objects or persons within a defined area.
The product range includes:
- EOS4: A compact safety light curtain offering high performance with features like self-monitoring static outputs and control of external contactors.
- EOS2: Designed for applications requiring a balance between performance and cost, featuring selectable automatic or manual restart.
- Janus: Ideal for access control applications, providing reliable detection and safety features.
- Safegate: Tailored for hazardous areas, ensuring compliance with stringent safety standards.
- Vision: Combines safety with advanced vision capabilities for enhanced monitoring.
Each model is designed to meet specific industrial needs, from high-vibration environments to explosive atmospheres, ensuring maximum safety and efficiency.
ReeR Safety Controllers and Interfaces – Advanced Industrial Safety Solutions
ReeR's Safety Controllers and Interfaces provide advanced solutions for managing and controlling safety systems in industrial environments. These devices enable centralized management of various safety sensors, such as safety light curtains, laser scanners, photocells, and emergency stop switches, ensuring effective protection of personnel and compliance with international safety standards.
Controllers

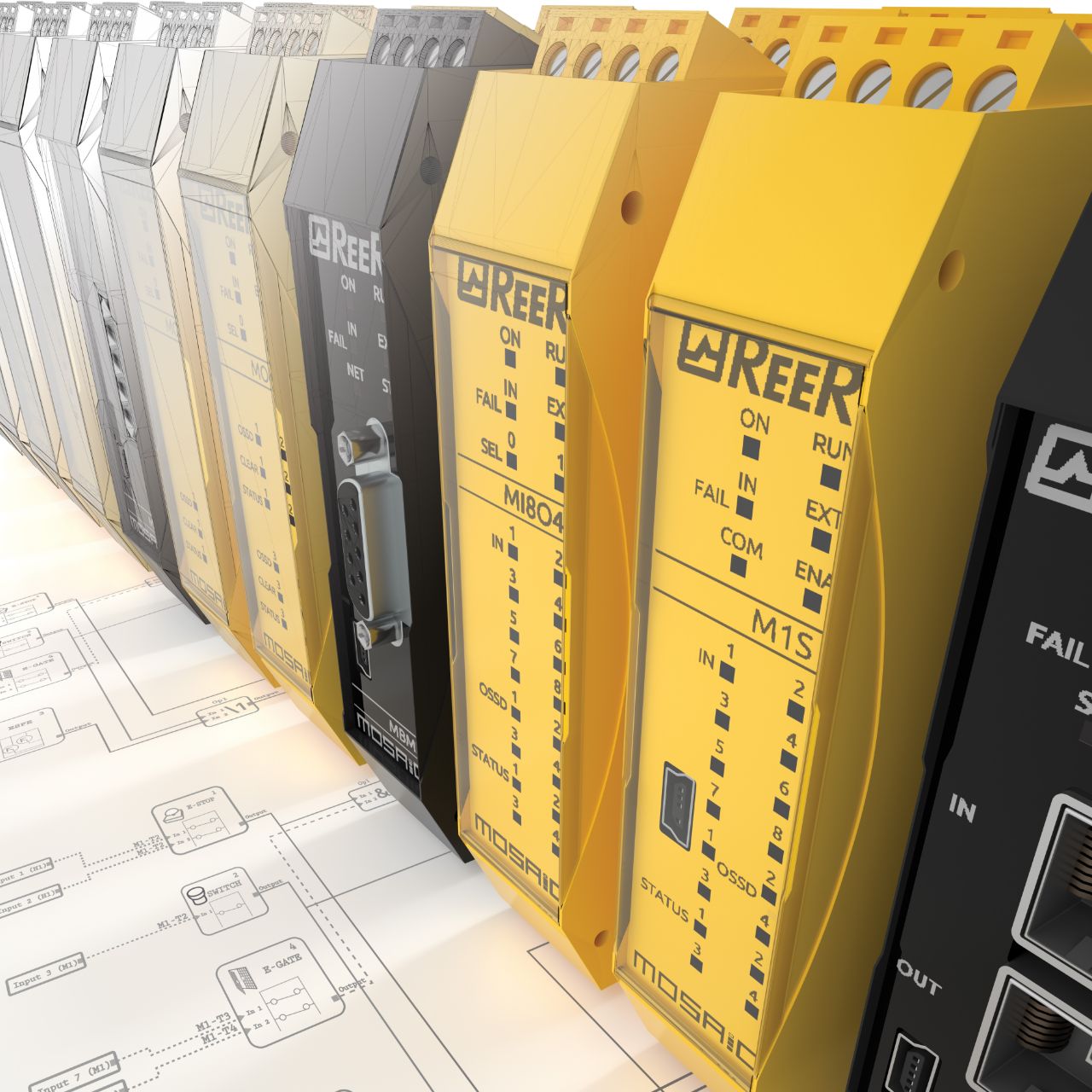

ReeR's Mosaic series includes programmable safety controllers that offer flexibility and scalability. Master units, such as the M1, M1S, and M1S COM, support up to 16 inputs and 8 OSSD outputs, with Fieldbus communication capabilities and compliance with SIL 3 and PL e standards. Expansion units, like the MV (speed monitoring), MA (analog inputs), and MR (safety relay units), allow customization of the system to meet specific application requirements.
Interfaces
ReeR's safety interfaces, such as the SR ZERO, SR ONE, and SR E-Stop series, provide reliable connections between safety sensors and the control circuits of machines or plants. These interfaces support various output types, including OSSD and NC, and are compatible with Type 3 and Type 4 safety standards, ensuring safe and efficient operation of systems.
ReeR Safety Devices – Laser Scanners, Contactless Sensors, Interlocks, Photocells & Encoders

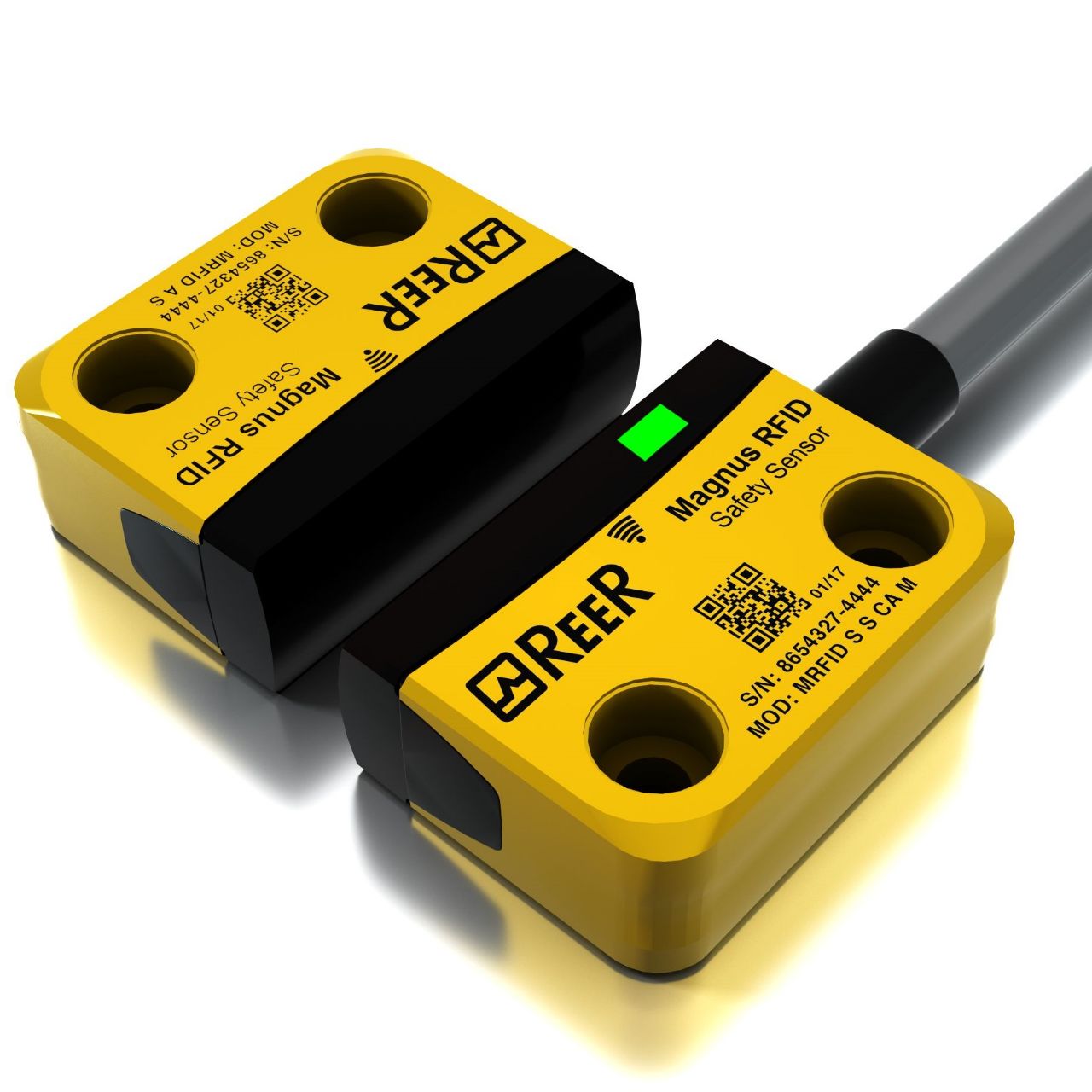

ReeR’s Safety Devices portfolio provides a wide spectrum of technical solutions aimed at safeguarding machines, equipment, and personnel in industrial environments. Among these solutions are contactless sensors which include magnetic and RFID safety switches that monitor the position of sliding, hinged or removable guards; safety encoders based on Sin/Cos incremental technology to support certified speed monitoring functions; interlock switches that lock guard doors and prevent operation unless safe conditions are met; laser scanners (AOPDDR devices) that detect intrusions in defined zones without requiring a cooperating target; and safety photocells for single or multiplexed beam protection. These devices are engineered to offer high safety levels (Type 4, PL e, SIL 3), functional reliability, and seamless integration into control systems, thus ensuring that the most demanding safety requirements can be met in modern industrial automation systems.
ReeR Measurement Light Curtains – Micron AC, AV, B, IOL & C

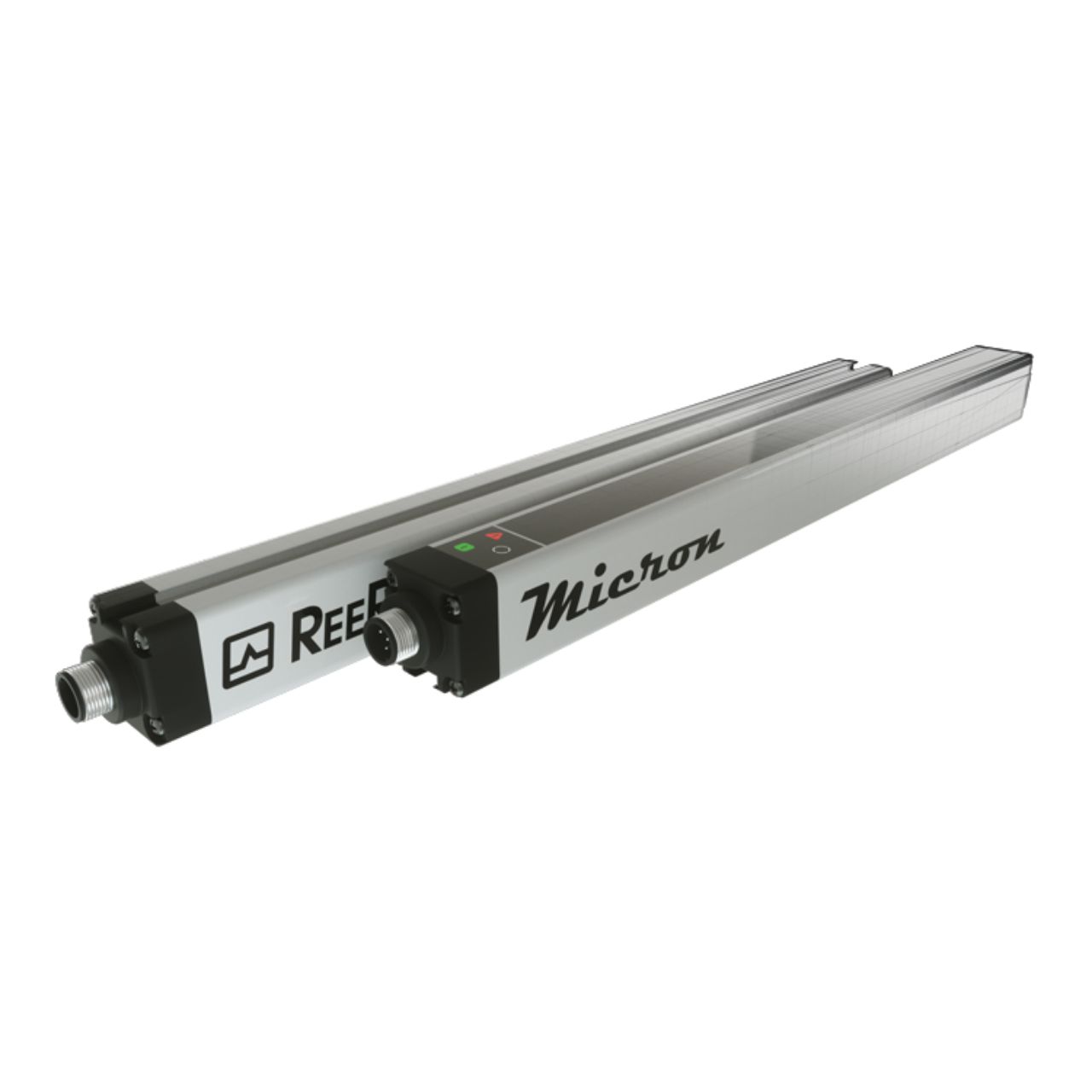

ReeR’s Measurement Light Curtains are advanced sensors designed not merely to detect presence, but to measure, recognize shapes and count objects with high precision. Depending on which beams in the curtain are engaged by an object, these sensors provide real-time data to a PLC or PC to detect presence or absence, measure dimensions, identify profiles and perform counting. The Micron series includes Micron AC with analog voltage output (0–10 V), Micron AV with analog current output (4–20 mA), Micron B with dual analog outputs and programmable digital outputs, Micron IOL supporting IO-Link protocol, and Micron C offering solid-state outputs ideal for counting and presence detection. These sensors support synchronisation between emitter and receiver (optical or cable), multiple beam spacings (5, 10, 25, 30, 50, 75 mm), and are configurable via software. In special versions, they come with IP65, IP67 or IP69K enclosures, enhanced sensitivity for glass, or optical diaphragms for vertical mounting. With their versatility, the Micron measurement light curtains are perfect for industrial automation applications needing dimensional control, object recognition and precise counting.
ReeR Safety – Global Leader in Industrial Safety Sensors & Light Curtains

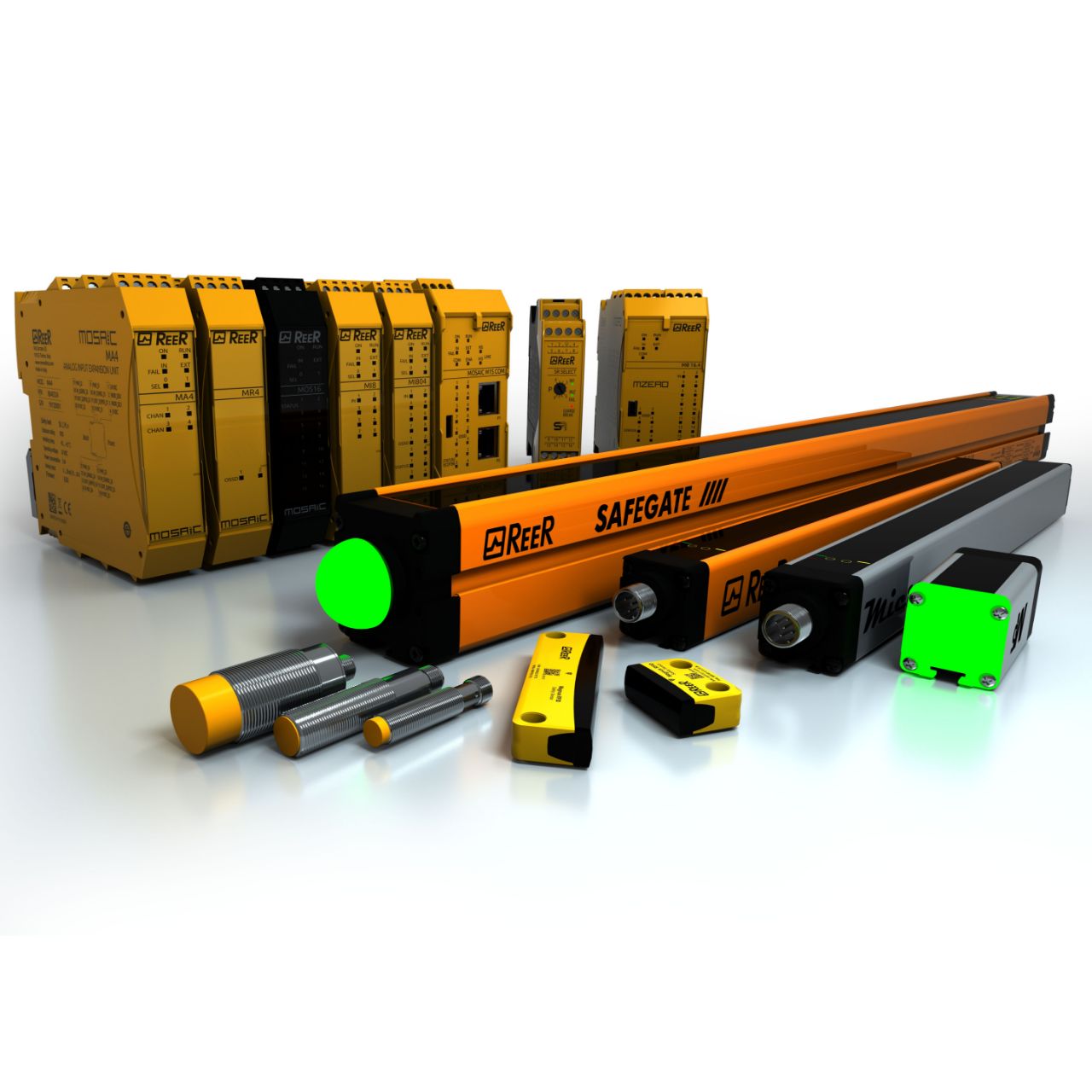

Founded in 1959 and headquartered in Turin, Italy, ReeR Safety has established itself as a leading global manufacturer of industrial safety components and systems. The company specializes in the design and production of safety light curtains, measurement light curtains, safety controllers, interfaces, and advanced optoelectronic safety devices used to protect machines and operators in industrial environments.
ReeR’s Mosaic Safety Controller platform represents one of the most modular and scalable safety logic systems available, enabling centralized and flexible control for complex automation architectures. Its range of safety light curtains is recognized for precision, durability, and compliance with international safety standards, ensuring operator protection even in demanding applications.
The company’s commitment to quality and innovation is reflected in its ISO 9001-certified production, a strong internal R&D department, and active participation in international standardization committees. Each ReeR product undergoes extensive testing to ensure reliability, precision, and long-term performance.
Today, ReeR Safety products are distributed in more than 50 countries worldwide, trusted by leading manufacturers, system integrators, and automation specialists. Combining advanced technology with decades of expertise, ReeR continues to set benchmarks in industrial safety — delivering solutions that enhance protection, improve efficiency, and support the smart factories of tomorrow.
